for sale:SCHAFFNER ETS Antenna Research Teseq GTEM 500 Cell with manual and SW up to 11G
FOR SALE

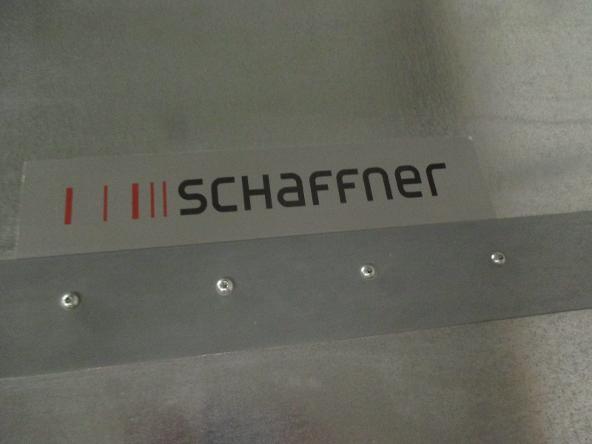

SCHAFFNER ETS Antenna Research Teseq GTEM 500 Cell with manual and SW. Condition is VG
Unit manufactured 2006
Frequency up to 11GHz
CONTACT PHILLIP 612-458-1054 44atlantic@tutanota.com

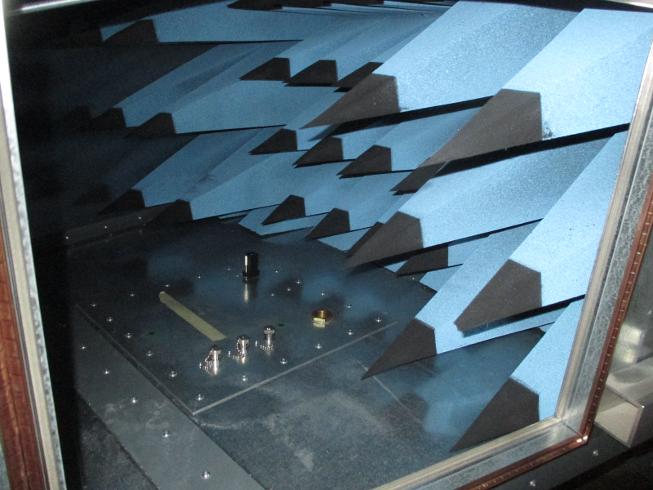

GTEM (Gigahertz Transverse Electro Magnetic) cell is a test site for efficiently performing both radiated immunity and emissions testing in a single, controllable and shielded environment. Compared to other test sites, GTEM testing is faster with high accuracy and excellent reproducibility. In principle, the GTEM cell is a coaxial line expanding pyramidally and having an impedance of 50 Ω. At its end, the line is terminated by a combination of termination resistors and RF absorbers designed and constructed to match the above mentioned impedance. The GTEM 500 has a maximum septum height of 500 mm and is suitable for emissions and immunity testing.
